Jeep YJ/JK AR15 Roll Bar Mount Kit — 2.25-Inch — the complete ARmA15 locking mount plus Jeep 2.25-inch roll-bar mounting hardware. Heavy-duty 3/16-inch steel, discreet rifle storage, and quick access for compatible AR-15, M4, and M16 rifles.
Fitment: Jeep Wrangler YJ/JK — 2.25-inch roll bar. Measure your roll bar before ordering. Jeep Torx driver bit included. Wall hardware sold separately. Lock not included.
Want to mount it on a wall, too?
Wall hardware is optional and sold separately. Add the Wall Mount Hardware Kit: 2 lag bolts and a Torx driver bit.

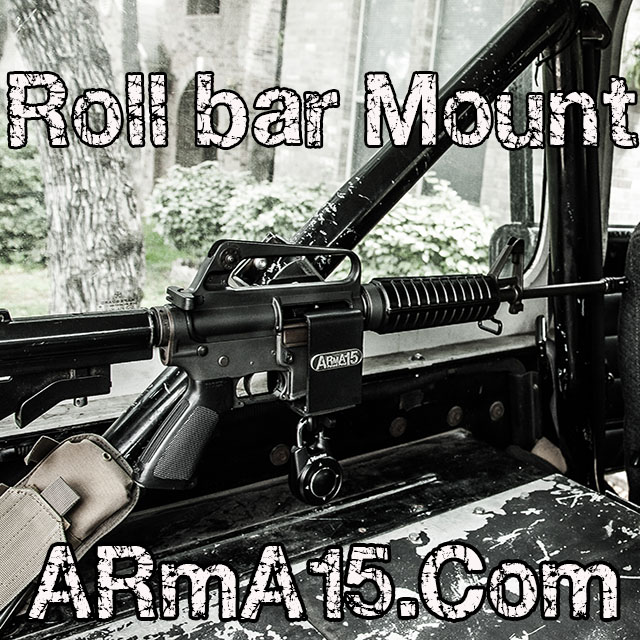

The Jeep AR15 roll bar mount combines the American-built ARmA15 locking mount with a mount for a 2.25-inch Jeep roll bar. Position it horizontally, vertically, diagonally, or upside down to suit your layout and clearance.
🚙 Choose the Correct Vehicle Kit
Jeep Wrangler YJ/JK — 2.25-inch roll bar. This kit is for the 2.25-inch roll-bar mounting configuration listed for Jeep Wrangler YJ and JK. Measure the mounting location; do not assume a different Jeep model or bar diameter will fit.
Check roll-bar diameter and clearance for occupants, seat belts, your rifle, and its accessories. If your configuration is unusual or you are unsure, send us your year, make, and model before ordering.
🔧 What’s Included
1× ARmA15 locking mount.

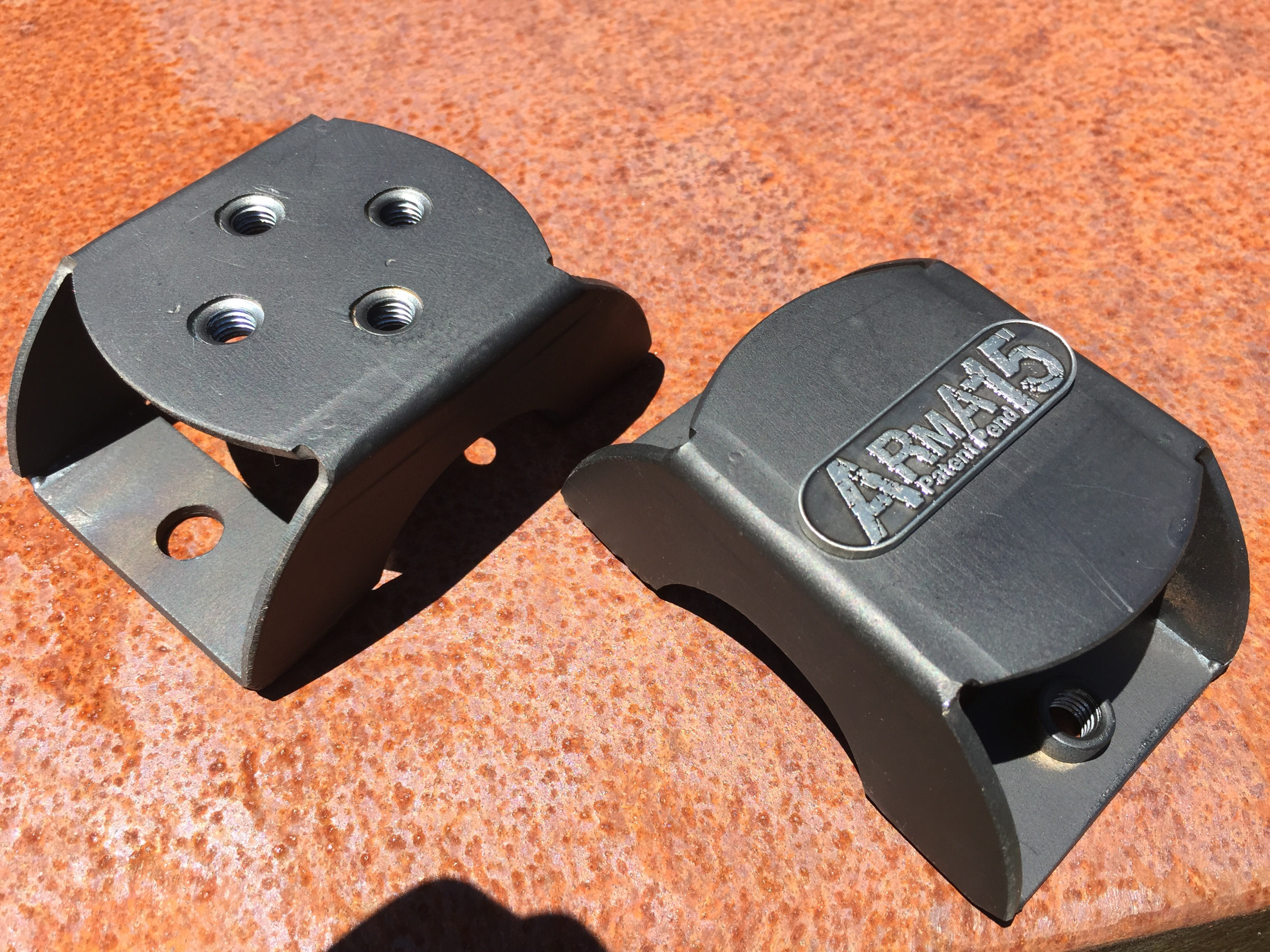

Jeep 2.25-inch roll-bar mount and mounting hardware.
Torx hardware and the required driver bit.
Wall hardware and lock are not included. This is a complete mount-and-vehicle-hardware bundle, not a hardware-only purchase.
💪 Built from Plate Steel — Not Some Folded Tin Taco
The vehicle hardware changes; the core ARmA15 locking mount is the same American-built mount used in our wall kit. You get a heavy-duty steel frame, reinforced locking points, and an ABS polymer magazine block designed to protect your firearm’s finish.
ARmA15 Frame and Locking Points
Frame: 3/16-inch plate steel, approximately 0.188 inch (4.78 mm).
Locking points: 1/4-inch solid steel, 0.25 inch (6.35 mm).
Thickness comparison: the frame is approximately a stack of two U.S. quarters and a dime; the locking points are approximately four quarters.
For comparison, nominal 14-gauge mild steel is about 0.0747 inch thick and 16-gauge about 0.0598 inch. The ARmA15 frame is about 2.5 times and 3.1 times those thicknesses, respectively.
Thickness comparisons describe the material, not a guarantee that every complete installation has the same strength. Engineering comparisons depend on steel properties, geometry, loading, hardware, and the mounting surface.
Thin sheet metal may be fine for a lunchbox. Your rifle deserves more than a folded tin taco.
🚀 Quick Access Demonstration
Watch the ARmA15 go from locked to loaded in 3 seconds in our demonstration. This shows the mount’s quick-access operation; actual access time depends on your lock, placement, and practice. It is not the vehicle installation video.
🔓 Choose Your Lock — Lock Not Included
The interchangeable lock design lets you choose a compatible padlock, a quick-access lock, or a hidden-shackle puck lock. Choose the lock that suits your storage needs and confirm fit before use. The lock hole diameter is 0.44 inch (11.18 mm).
Quick-access lock: for convenient routine access.
Hidden-shackle puck lock: covers the shackle to reduce access to it.
Standard padlock: a straightforward alternative.
🔍 Firearm Compatibility
Compatible platforms: AR-15, M4, M16, Tavor SAR*, ARX-100, SCAR-16, AR-15 6.8 SPC, AR-15 .300 Blackout, AR-15 .458 SOCOM, KelTec SU16, left-handed Rock River Arms AR-15, and California featureless AR-15s.
Not compatible: left-handed Stag AR-15, SIG 556xi, AR-10, LR-308, AK-47, shotguns, or firearms that do not use an AR-15-style magazine. A compatible firearm platform does not by itself establish vehicle clearance: check your optic, sling, and other accessories.
*Tavor SAR is compatible. Tavor X95 requires a low-profile or folding cocking handle upgrade. For a fixed-magazine configuration or uncertain fit, contact ARmA15 before ordering.
🏠 One Mount, More Than One Location
The optional, separately purchased Wall Mount Hardware Kit lets you install the ARmA15 on a suitable wood stud. Its low-profile design supports vertical or horizontal wall placement in a closet, behind a jacket, or behind suitable wall art. Because a drywall screw isn’t a security plan.
The mount sits approximately 3-5/8 inches from the wall when locked. Moving it to a different vehicle requires the appropriate hardware and a fresh clearance check.
🧰 Installation and Setup
Open the Jeep installation guide for this mounting configuration. Additional installation videos and written instructions will be added there.
Confirm the 2.25-inch roll-bar diameter, then check placement and clearance.
Use the matching hardware and follow the vehicle-specific instructions. Check the chosen orientation and accessory clearance.
Fit your compatible lock and check retention, seat movement, and access with the firearm unloaded.
This is a roll-bar mounting kit. Contact us if you need a different mounting arrangement.
❓ Quick Answers
Does this price include the ARmA15 mount?
Yes. The $129.99 bundle includes the ARmA15 mount, Jeep roll-bar hardware, and the required Torx driver bit. Wall hardware and a lock are purchased separately.
Will it fit any Jeep roll bar?
The specified diameter is 2.25 inches, for the YJ/JK configuration. Confirm the actual bar diameter and clearance before ordering.
